RS485 Communication Cable M12 to M12 Connectors, Connects Pfeiffer HiPace Turbo Pump TC Drive Unit to OmniControl Controller, 3 m Long.

Write a review

$235⁴⁰

In stock

Price in points: 236 points

+ −

Delivery

Payment options

Our advantages

— 12 months warranty
— SMS notification
— Return and exchange
— Different payment methods
— Best price

Description
Documents
Reviews

RS485 Communication Cable M12 to M12 Connectors, Connects Pfeiffer HiPace Turbo Pump TC Drive Unit to OmniControl Controller, 3 m Long. 3m Long.

This cable meets or exceeds OEM specs (OEM PN: PM 061 283-T3).

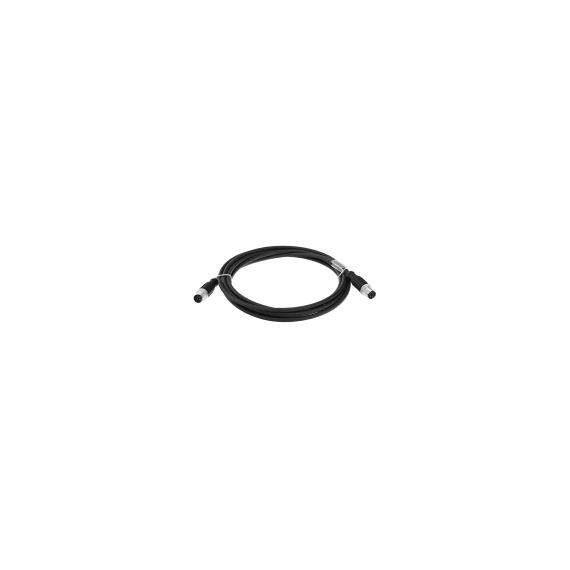

This special serial cable allows RS485 communications between a Pfeiffer HiPace turbo pump TC drive unit and a Pfeiffer OmniControl or DCU controller. This interface cable has 4-pin, M12, round screw-type connectors on both ends. This cable is 3 meters long (10 ft.) and meets or exceeds OEM specs (OEM PN: PM 061 283-T3).

On TC 110 drive units, which have a 15-pin D-Sub (X3) connector, a power and communications adapter cable (part number P103335 or P1011168) is used to split out the X3 connector into a pump power cable and a short RS485 communication cable (terminated with an M12 connector). This 3 meter long RS485 cable attaches to and extends that short cable. The other end of this cable connects to the M12 round connector on an OmniControl or a DCU controller.

On TC 400 and TC 1200 drive units, which have a separate round M12 communications connector, this cable directly connects the drive unit to an OmniControl controller.

This Pfeiffer RS485 Communication Connector connects:

TC 110 drive unit on HiPace 80 and 300H turbo pumps to an OmniControl 200 or DCU 110 controller (requires adapter cable P103335 or P1011168).
TC 400 drive unit on HiPace 300, 350, 450, 700 and 800, to an OmniControl 300 or 400 controller (direct connction).
TC 1200 drive unit on a HiPace 1200 turbo pump, to an OmniControl 001 controller (direct connction).

Pfeiffer HiPace 300 Turbopump with TC 400 Electronic Drive Unit Operating Instructions.pdf (Pfeiffer_HiPace_300_Turbopump_with_TC_400_Electronic_Drive_Unit_Operating_Instructions.pdf, 8,750 Kb) [Download]

Pfeiffer HiPace 300H Turbopump with TC 100 Electronic Drive Unit Operating Instructions.pdf (Pfeiffer_HiPace_300H_Turbopump_with_TC_100_Electronic_Drive_Unit_Operating_Instructions.pdf, 5,847 Kb) [Download]

Pfeiffer HiPace 350 Turbo Pump with TC 400 Electronic Drive Unit Operating Instructions.pdf (Pfeiffer_HiPace_350_Turbo_Pump_with_TC_400_Electronic_Drive_Unit_Operating_Instructions.pdf, 6,794 Kb) [Download]

Pfeiffer HiPace 450 Turbo Pump with TC 400 Electronic Drive Unit Operating Instructions.pdf (Pfeiffer_HiPace_450_Turbo_Pump_with_TC_400_Electronic_Drive_Unit_Operating_Instructions.pdf, 5,697 Kb) [Download]

Pfeiffer HiPace 700 Turbo Pump with TC 400 Electronic Drive Unit Operating Instructions.pdf (Pfeiffer_HiPace_700_Turbo_Pump_with_TC_400_Electronic_Drive_Unit_Operating_Instructions.pdf, 4,937 Kb) [Download]

Pfeiffer HiPace 800 Turbopump with TC 400 Electronic Drive Unit Operating Instructions.pdf (Pfeiffer_HiPace_800_Turbopump_with_TC_400_Electronic_Drive_Unit_Operating_Instructions.pdf, 4,885 Kb) [Download]

Pfeiffer HiPace 1200 Turbopump with TC 1200 Electronic Drive Unit Operating Instructions.pdf (Pfeiffer_HiPace_1200_Turbopump_with_TC_1200_Electronic_Drive_Unit_Operating_Instructions.pdf, 7,293 Kb) [Download]

Pfeiffer OmniControl Turbo Pump Controller Operating Instructions.pdf (Pfeiffer_OmniControl_Turbo_Pump_Controller_Operating_Instructions.pdf, 5,422 Kb) [Download]

Pfeiffer OnmiControl 001 Controller Data Sheet.pdf (Pfeiffer_OnmiControl_001_Controller_Data_Sheet.pdf, 386 Kb) [Download]
