Pfeiffer ONF 25 Oil Mist Eliminator for Duo 10M, Penta 10, KF25 Outlet Flange Pumps PN PKZ40157

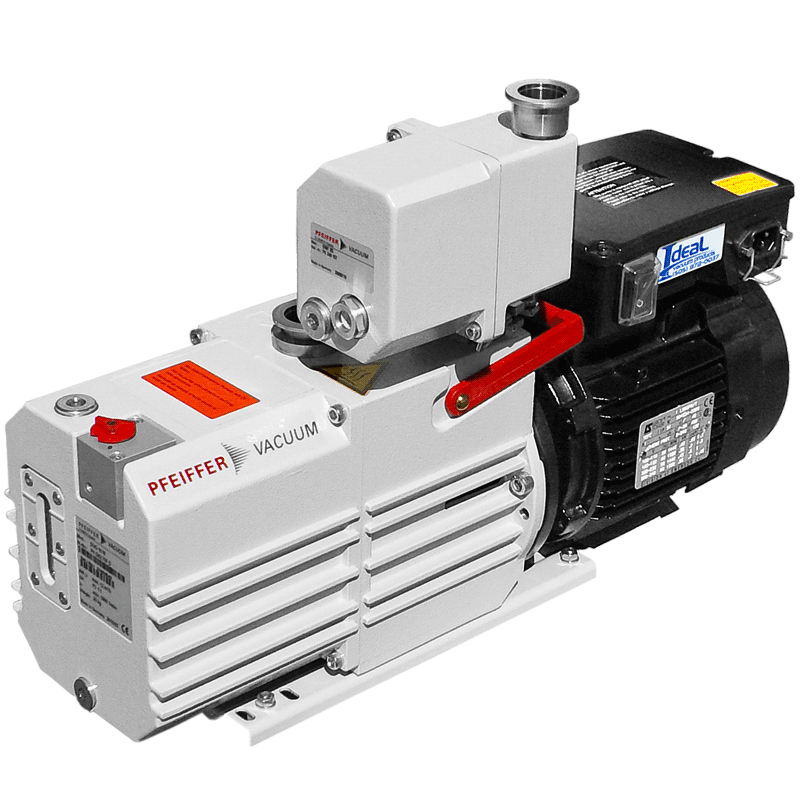

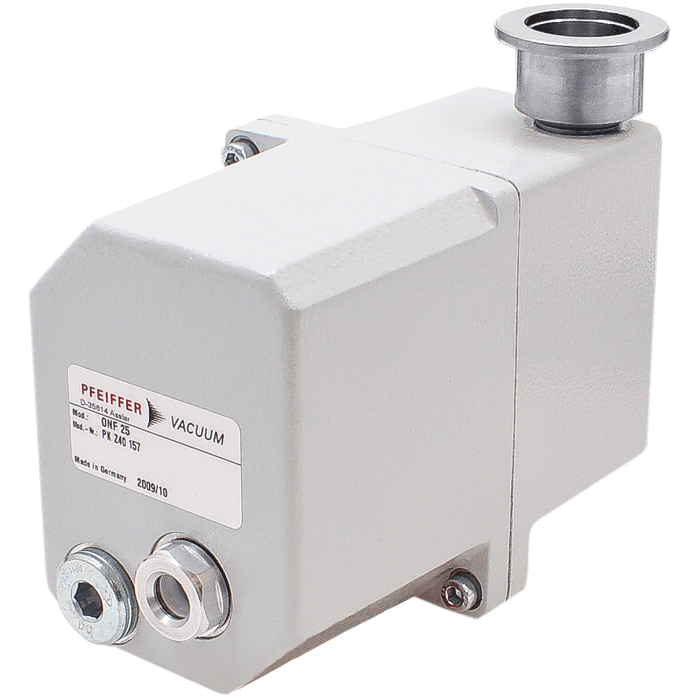

For Pfeiffer Pumps up to 10 m3/h (6 CFM).The Pfeiffer ONF 25 (KF25) oil mist filter separator is mounted on the exhaust connection of Pfeiffer rotary vane pumps. It prevents air pollution from operating oil mist that is ejected by the pump to a greater or lesser degree depending on the operating pressure. The filter inserts are installed in a housing made of corrosion-resistant aluminum and consist of a cylindrical filter of glass polyester fleece. The filter inserts are opened by an incorporated pressure relief valve when the contamination becomes excessive so that the maximum working pressure of 1.5 bar (absolute) cannot be exceeded. The collected oil mist, now fluid can be observed through the sightglass and discharged with the drain screw. For complete application, specifications and dimensions, download PDF below at AVAILABLE DOWNLOADS.
Fits Pfeiffer Rotary Vane Pumps with KF25 Outlet Flanges:
Pfeiffer Rotary Vane Pumps: Duo 10M, Penta 10
