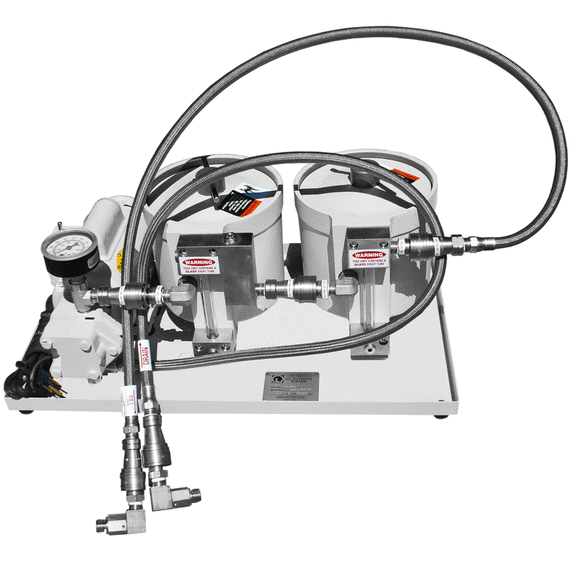

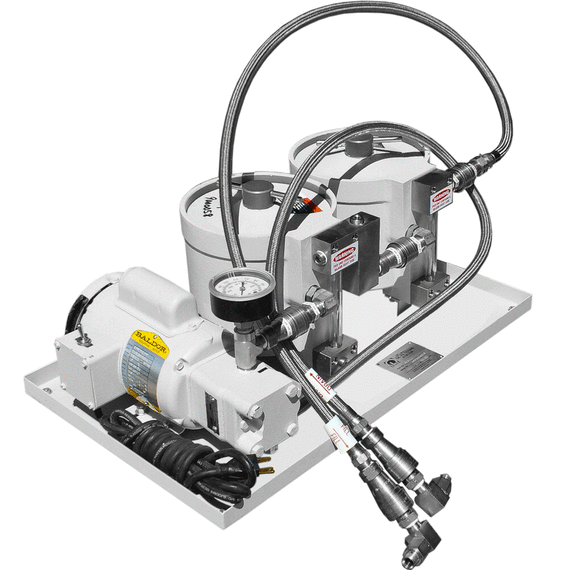

NEW Leybold Dual Canister OF-1000 Oil Filtering System P/N 898 552
These NEW Leybold OF 1000 oil filtering systems are a dual canister model and are designed to remove acids and particulates from the lubricating fluid used in mechanical oil-sealed vacuum pumps. The OF 1000 oil filtering systems are located externally from the vacuum pump, and utilize their own integral gear pump in conjunction with a bypass to continuously recycle fluid through a filtering medium; the medium is housed in an element/canister assembly which additionally serves to absorb heat, and thus reduce the operating temperature of the vacuum pump. This is for hydrocarbon Oil filtering only. These units come new clean of oil and can be assigned to either PFPE (Fomblin or Krytox) or hydrocarbon service. These dual canister systems does not come with filter medium or any oil. Filter elements (Aluminum Oxide, Fullers Earth, Hydrophilic and Particulate) and vacuum oils are available on this website. These units can be operated on 1-Phase 115/208-220 VAC 50/60 Hz. A complete specifications and application brochure is available for download in PDF format below.
Weight Dry, with no filter element or oil : 60 lbs.
