Leybold ARS 16-25 Exhaust Filter w/ Lubricant Return, for Leybold D 16BCS, D 25BCS, P/N 18956

Write a review

CODE:

$3,120⁵⁷

$3,340⁰⁰ -7%

In stock

Price in points: 3121 points

+ −

Delivery

Payment options

Our advantages

— 12 months warranty
— SMS notification
— Return and exchange
— Different payment methods
— Best price

Save 7%

Description
Documents
Reviews

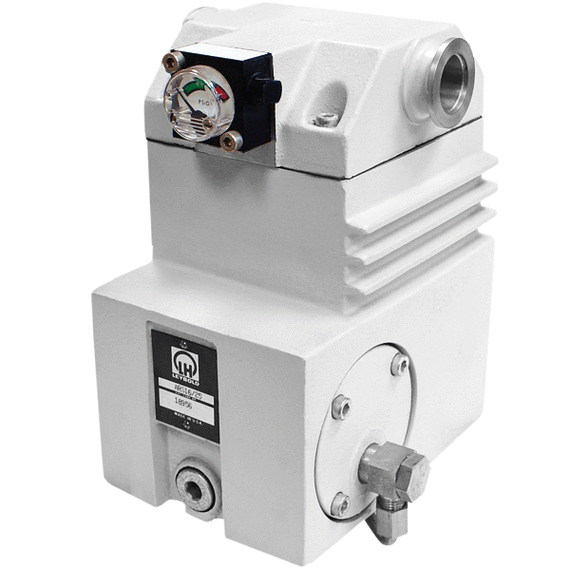

NEW Leybold ARS 16-25 Exhaust Filter w/ Lubricant Return, for Leybold D16BCS, D25BCS, Leybold P/N 18956

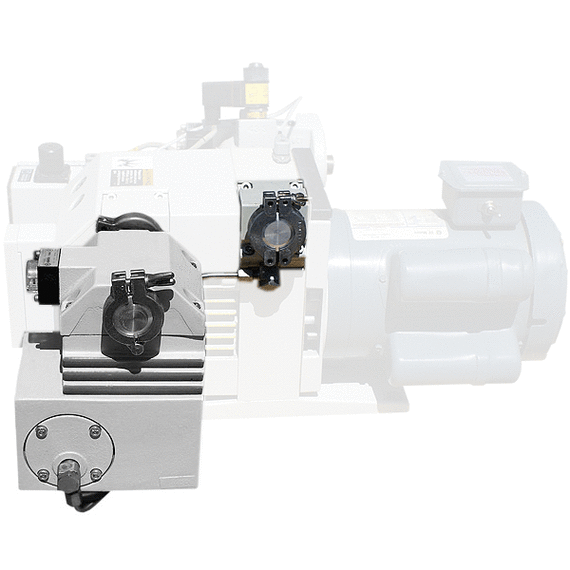

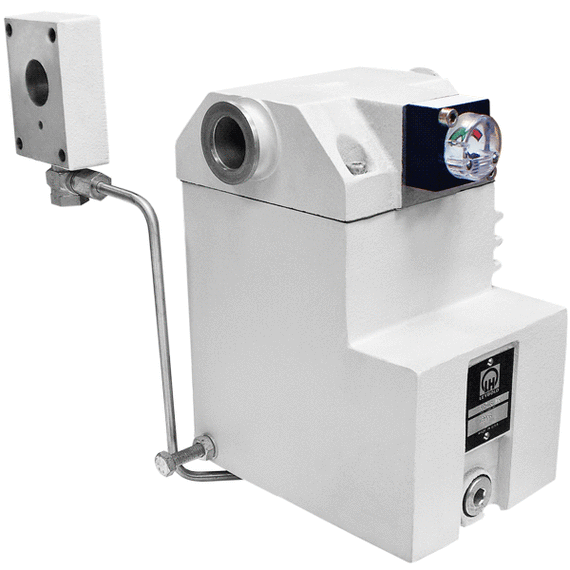

This combination of an exhaust filter with a float controlled valve considerably extends the manintenance intervals of the TRIVAC BCS. The typical application is for filtering the exhaust air of entrapped lubricant particles. This ARS exhaust filter is connected to the exhaust port of the TRIVAC BCS, the return line is connected at the intermediate flange under the intake port. Supplied Equipment includes intermediate flange, connecting lines with hollow screws, required gaskets as well as mounting screws for the intake flange. Can be used with hydrocarbon or PFPE oil systems. For complete specifications and advantages to the user, download data sheet see below. (AVAILABLE DOWNLOADS:)

Leybold Filter with Lubricant Return ARS 16-25:
Fits Pump Models: Leybold D16B, D16BCS, Leybold D25B, D25BCS
Inlet & Exhaust Flanges: ISO KF25 (NW25)
Weight: 10.4 lb
Replacement Filter Element FE 16-25: Leybold Part No. 18972

Leybold ARS 16-25, 40-65 Exhaust Filter Operating Instructions (Leybold_ARS_16-25,_40-65_Exhaust_Filter_Operating_Instructions.pdf, 771 Kb) [Download]

Leybold ARS 16-25, 40-65 Exhaust Filters with Lubricant Return Data Sheet (Leybold_ARS_16-25,_40-65_Exhaust_Filters_with_Lubricant_Return_Data_Sheet.pdf, 411 Kb) [Download]

Leybold ARS 16-25, ARS 40-65 Exhaust Filter Parts Lis & Exploded View (Leybold_ARS_16-25,_ARS_40-65_Exhaust_Filter_Parts_Lis___Exploded_View.pdf, 988 Kb) [Download]

IVP Technical Considerations for Selecting Vacuum Components for Chemical Processes (IVP_Technical_Considerations_for_Selecting_Vacuum_Components_for_Chemical_Processes.pdf, 3,531 Kb) [Download]
