Edwards TIC Relay Box Without Setpoints Allows TIC Controller To Control Backing Pump Flange Heater Band and Isolation Valve. PN: D39711805

$1,04067
In stock
Price in points: 1041 points
Delivery
Payment options
Our advantages
  • — 12 months warranty
  • — SMS notification
  • — Return and exchange
  • — Different payment methods
  • — Best price

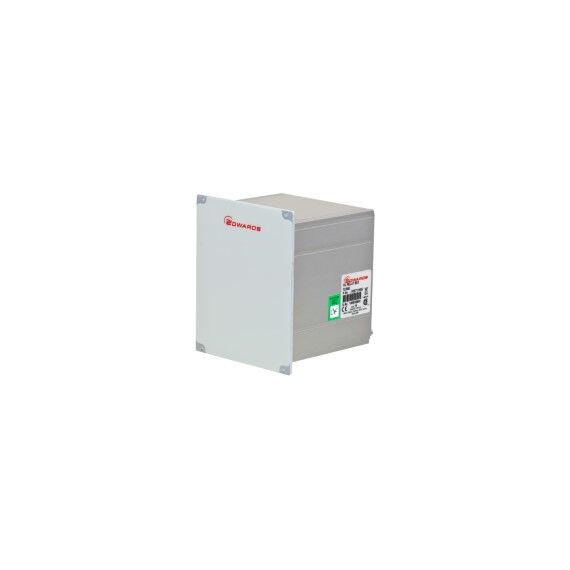

Edwards TIC Relay Box, Allows TIC To Control Backing Pump, Flange Heater Band and Isolation Valve, No Setpoints.

Edwards Part Number: D39711805.

This Edwards TIC relay box acts as the control interface between the TIC controller and the mains backing pump, turbo pump flange heater band, and a backing line isolation valve. This relay box does not have any setpoint relays. The relay box can be used on a benchtop or rack mounted alongside the TIC controller. The TIC relay box connects to the the TIC Turbo Instrument Controller with the 25 pin D-Sub, logic interface cable (part number P1012534). The relay box accepts input power from100-240 VAC. The Edwards input (mains) power cable (part number P106129) is sold separately.

Maximum rating for powering the backing pump is 240 VAC@10A, and 240 VAC@1A for the heater (bakeout) band. The backing pump and heater band connections are individually fused. Note that the backing pump and heater band must be rated for the same voltage as the input voltage supplied to the relay box. The isolation valve control has a maximum rating of 24 VDC@0.5A and is energised whenever the backing pump is running. This Edwards relay box has part number D39711805.

The TIC Relay Box and the TIC Turbo Instrument Controller are compatible with these turbo pumps:

  • nEXT85D
  • nEXT240D
  • nEXT300D
  • nEXT400D
  • nEXT730D
  • nEXT930D
  • nEXT1230H

Edwards nEXT 55D 85D Turbo Pumps Instruction Manual.pdf (Edwards_nEXT_55D_85D_Turbo_Pumps_Instruction_Manual.pdf, 3,234 Kb) [Download]

Edwards nEXT 240D 300D 400D Turbomolecular Pumps Instruction Manual.pdf (Edwards_nEXT_240D_300D_400D_Turbomolecular_Pumps_Instruction_Manual.pdf, 1,415 Kb) [Download]

Edwards nEXT 730D 930D 1230H Turbo Pumps Instruction Manual.pdf (Edwards_nEXT_730D_930D_1230H_Turbo_Pumps_Instruction_Manual.pdf, 2,423 Kb) [Download]

Edwards nEXT Turbomolecular Pumps Entire Range Brochure.pdf (Edwards_nEXT_Turbomolecular_Pumps_Entire_Range_Brochure.pdf, 2,984 Kb) [Download]

Edwards TIC Relay Box Instruction Manual.pdf (Edwards_TIC_Relay_Box_Instruction_Manual.pdf, 345 Kb) [Download]

Edwards TIC Turbo Instrument Controller Instruction Manual.pdf (Edwards_TIC_Turbo_Instrument_Controller_Instruction_Manual.pdf, 2,249 Kb) [Download]
