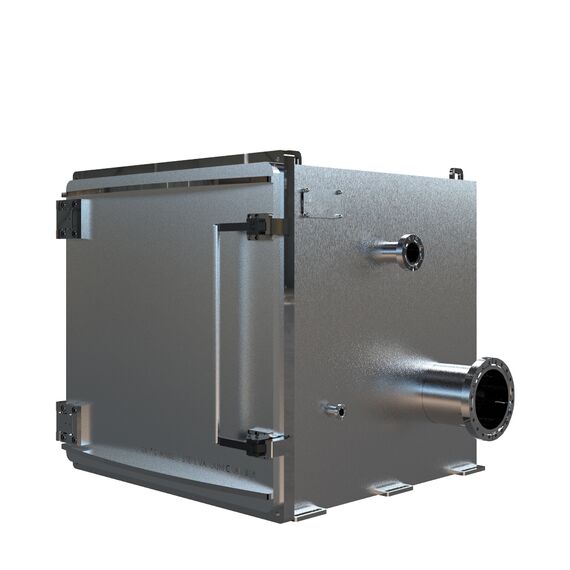

Fabricated and assembled entirely in our manufacturing facility, these robust, inexpensive vacuum chambers are a highly efficient way for your R&D lab to get into high vacuum applications. With an internal dimension of at least 28 x 28 x 28 inches, all of these cubic chambers are made with corrosion resistant 304 stainless steel plate . These leak-tested chambers are internally TIG welded, and include an O-ring seal, sturdy hinged door, and easy open latch for quick access. Your choice of door includes an aluminum or stainless steel door with the choice of a integrated window. For custom options please call.
Specifications
- Interior Chamber Size: Approximately 28X28X28 inches (approx. 71X71X71cm)
- Ports Include: 1 x CF 8 in, 1 x CF 6 in, 3x CF 3.375 in, 2 x CF 2.75 in, 1 CF 1.33 in
- Chamber Material: 304 Stainless Steel
- Weight: 680 lbs (308.4 kg) without door
- Volume: 13.25 cu. ft. (375.2 liters)
- Hinged Front Door:Stainless Steel
- Ultimate Pressure: 1x10-6 Torr (High Vacuum)
- Leak Tested: (Helium) to 1x10-8 atm cc/sec
- Operating Temperature Range (Viton Seal): 5° to 302°F (-15° to 150°C)
- Lead Time: One to Two Weeks (7-14 days)
- Call for additional porting options
- Call for additional coating options
- Call for expanded temperature range
