Bolt Kit For 1.33 In. Conflat Tapped Bolt Hole Flanges and Vacuum Plates, Six Silver-Plated Socket Head Bolts With Washers, 8-32 x 1/2".

Write a review

CODE:

$30⁹⁹

In stock

Price in points: 31 points

+ −

Delivery

Payment options

Our advantages

— 12 months warranty
— SMS notification
— Return and exchange
— Different payment methods
— Best price

Description
Documents
Reviews

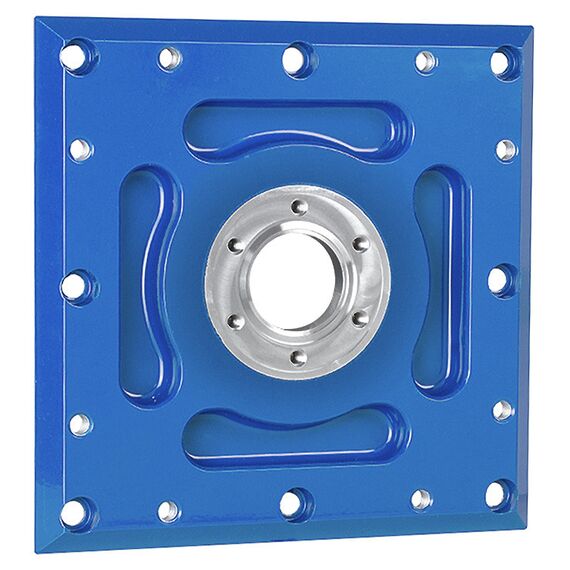

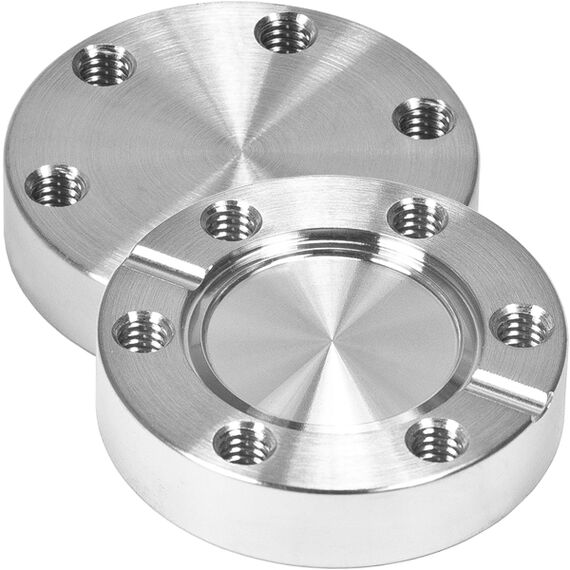

These bolt kits contain silver-plated Allen head bolts and washers to fasten tapped hole 1.33 (1-1/3) inch CF Conflat flanged fittings. These confalt flages can be pumped down to 10-13 torr (10-11 Pa) and can be heated to 450 °C for bake-out. North American flange sizes are given by flange outer diameter in inches: 1-1/3 ("mini conflat"), 2-1/8, 2-3/4, 4-1/2, 4-5/8, 6, 6-3/4, 8, 10, 12, 13-1/4, 14 and 16-1/2. In Europe and Asia, sizes are given by tube inner diameter in millimeters: DN16, DN40, DN63, DN100, DN160, DN200, DN250.

Complete Kit - 1.33 (1-1/3) inch Conflat Tapped Bolt Hole Fasteners:

QTY 6, Silver-Plated 8-32 x 0.50 Inch Long Allen Bolts
QTY 6, Washers
